MultiaxialFiber#
A MultiaxialFiber section is used to model a Frame section with shear deformation.
The section is defined by a collection of fibers that discretize the cross-section.
- class xara.FrameSection("MultiaxialFiber", shape, *, fibers)
Create a frame section that integrates the response of
xara.MultiaxialMaterialobjects distributed over the section shape.- Parameters:
- shape
A Shape object defining the cross-sectional geometry.
- fibers: dict, optional
An optional dictionary describing the distribution of fibers over the cross-section. By default fibers will be generated automatically.
- Model.section("MultiaxialFiber", tag, **kwds)
- Parameters:
- tag: integer
unique Section tag
- section MultiaxialFiber $tag $fibers
- Parameters:
- tag
unique section tag

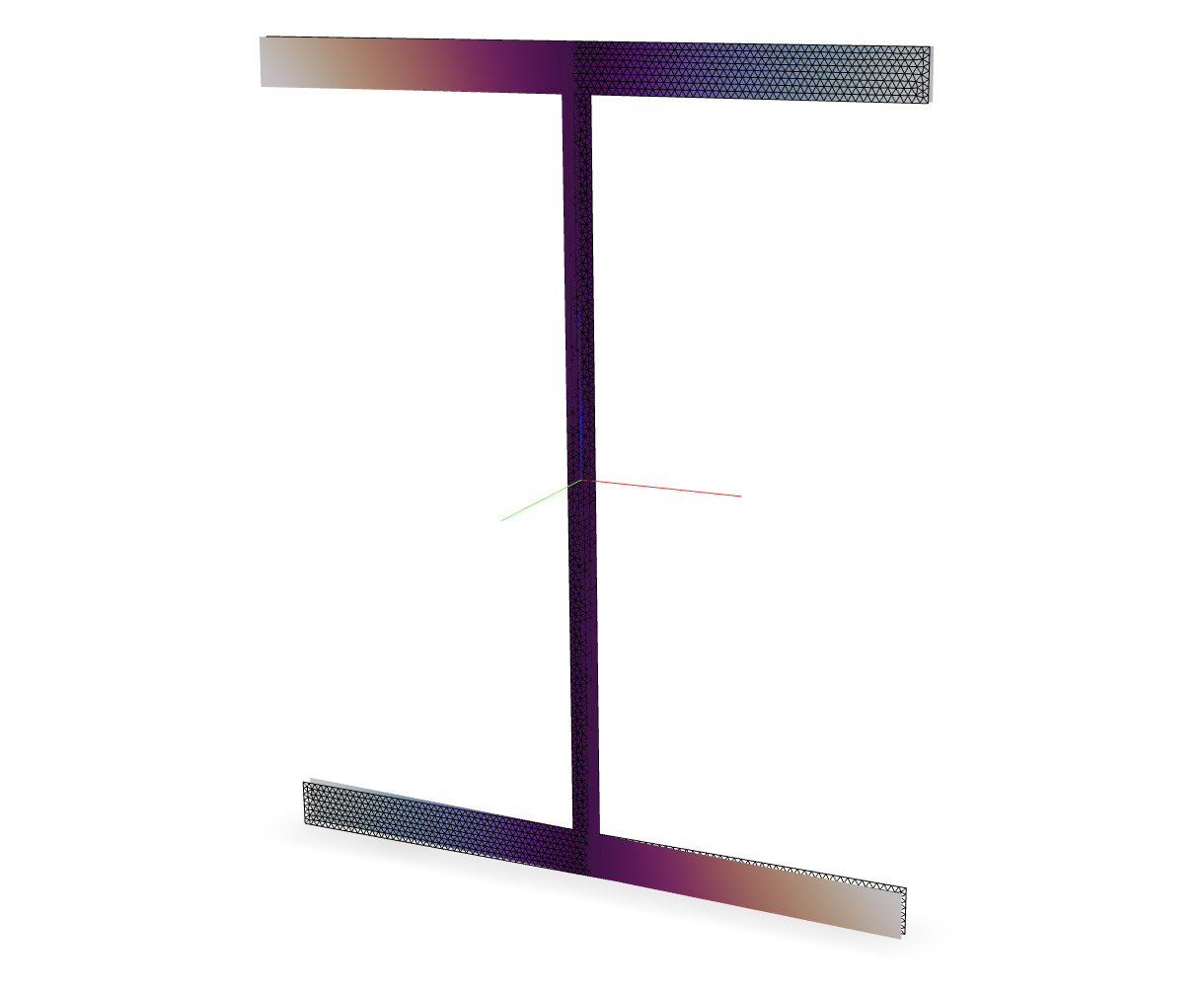

Example of an AISC W8x28 section discretized with fibers and rendered with veux.#
Valid setParameter targets are
"warp", fiber, fieldwherefiberis an integer identifying a fiber andfieldis an integer identifying the warping field.
