Nonlinear Static Analysis#

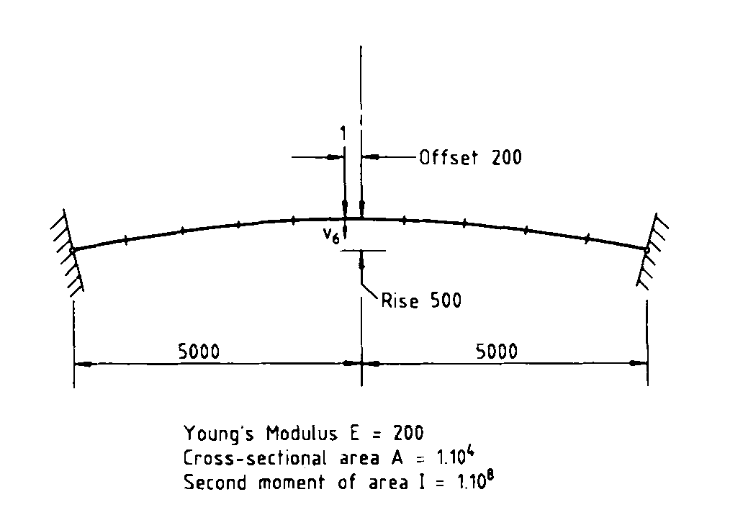

This example investigates analysis methods for nonlinear static analysis. Consider the shallow arch shown below (Clarke and Hancock, 1990).
This problem exhibits several critical points along the solution path, and requires the use of a sophisticated algorithm to properly traverse these. In this study, we will investigate how the OpenSees framework can be used to compose these algorithms.
In this notebook, the Model is created by the arch_model helper function:
import xara
import numpy as np
def arch_model():
# Define model parameters
L = 5000
Rise = 500
Offset = 200
# Define material parameters
E = 200
A = 1e4
I = 1e8
# Compute radius
R = Rise/2 + (2*L)**2/(8*Rise)
th = 2*np.arcsin(L/R)
#
# Build the model
#
model = xara.Model(ndm=3, ndf=6)
# Create nodes
ne = 10
nen = 2 # nodes per element
nn = ne*(nen-1)+1
mid = (nn+1)//2 # midpoint node
for i, angle in enumerate(np.linspace(-th/2, th/2, nn)):
tag = i + 1
# Compute x and add offset if midpoint
x = R*np.sin(angle)
if tag == mid:
x -= Offset
# Compute y
y = R*np.cos(angle) - R*np.cos(th/2)
# create the node with coordinates (x, y, 0)
model.node(tag, (x, y, 0))
model.section("ElasticFrame", 1, A=A, E=E, Iy=I, Iz=I, J=2*I, G=E, Ay=A*100, Az=A*100)
# Create elements
model.geomTransf("Corotational02", 1, (0, 0, 1))
for i in range(ne):
tag = i+1
nodes = (i+1, i+2)
model.element("ForceFrame", tag, nodes, section=1, transform=1, shear=0)
model.fix( 1, (1, 1, 0, 1, 1, 0))
model.fix(nn, (1, 1, 0, 1, 1, 0))
for i in model.getNodeTags():
model.fix(i, dof=3)
# Create a load pattern that scales linearly
model.pattern("Plain", 1, "Linear")
# Add a nodal load to the pattern
model.load(mid, (0.0, -1.0, 0.0, 0, 0, 0), pattern=1)
model.system("BandGeneral", det=True)
# model.system("Umfpack", det=True)
# model.test("NormUnbalance", 1e-6, 25, 0)
model.test("NormDispIncr", 1e-8, 15, 9)
model.algorithm("Newton")
model.analysis("Static")
return model, mid
We’ll also find the following imports convenient:
import matplotlib.pyplot as plt
Solution Strategy#
Our general strategy is implemented in the following function solve().
This function adopts an incremental approach
where the load is applied in small steps of varying size.
The arguments to the function are:
model: axara.Modelinstancenode: an integer indicating which node to collect results from.
Both of these arguments will be supplied by the arch_model helper function mentioned
above.
def analyze(model, mid, increment, steps, dx, *args):
# Initialize some variables
xy = [[0,0]] # Container to hold solution history (i.e., load factor and displacement at `node`)
status = 0 # Convergence flag; Model.analyze() will return 0 if successful.
# Configure the first load increment strategy; explained below
increment(model, dx, *args)
steps = 1000
i = 0
while model.getTime() < 2000 and i < steps:
i += 1
# for step in range(steps):
# 1. Perform Newton-Raphson iterations until convergence for 1 load
# increment
status = model.analyze(1)
# 2. Store the displacement and load factor
xy.append([model.nodeDisp(mid, 2), model.getTime()])
# 3. If the iterations failed, try cutting
# the initial increment in half
if status != 0:
dx /= 2
increment(model, dx, *args)
return np.array(xy).T
def create_figure():
fig, ax = plt.subplots(1, 1, figsize=(6, 4))
ax.axhline(0, color='black', lw=0.5)
ax.axvline(0, color='black', lw=0.5)
ax.set_title("Displacement vs Load Factor")
ax.set_ylabel(r"Load factor $\lambda$")
ax.set_xlabel("Displacement $u$")
ax.set_xlim([0, 1200])
ax.set_ylim([-800, 3000])
return ax
The strategies used by Clarke and Hancock are:
- Solution 1
-
Iterative strategy: Constant load (Section 3.1)
Load incrementation strategy: Direct incrementation of the load parameter (Section 4.1.1) - Solution 2
-
Iterative strategy: Constant vertical displacement under the load, $u_{\mathrm{mid}}$ (Section 3.2)
Load incrementation strategy: Incrementation of the displacement component $u_{\mathrm{mid}}$ (Section 4.1.2) - Solution 3
-
Iterative strategy: Constant arc-length (Section 3.3)
Load incrementation strategy: Incrementation of the arc-length (Section 4.1.3) - Solution 4
-
Iterative strategy: Minimum unbalanced displacement norm (Section 3.5)
Load incrementation strategy: Incrementation of the arc-length (Section 4.1.3) - Solution 5
-
Iterative strategy: Constant weighted response (Section 3.7, equation (39))
Load incrementation strategy: Incrementation of the arc-length (Section 4.1.3) - Solution 6
-
Iterative strategy: Minimum unbalanced force norm (Section 3.6)
Load incrementation strategy: Using the current stiffness parameter (Section 4.2, equation (57)) - Solution 7
-
Iterative strategy: Minimum unbalanced force norm (Section 3.6)
Load incrementation strategy: Incrementation of the arc-length (Section 4.1.3) - Solution 8
-
Iterative strategy: Constant arc-length (Section 3.3)
Load incrementation strategy: Using the current stiffness parameter (Section 4.2, equation (57))

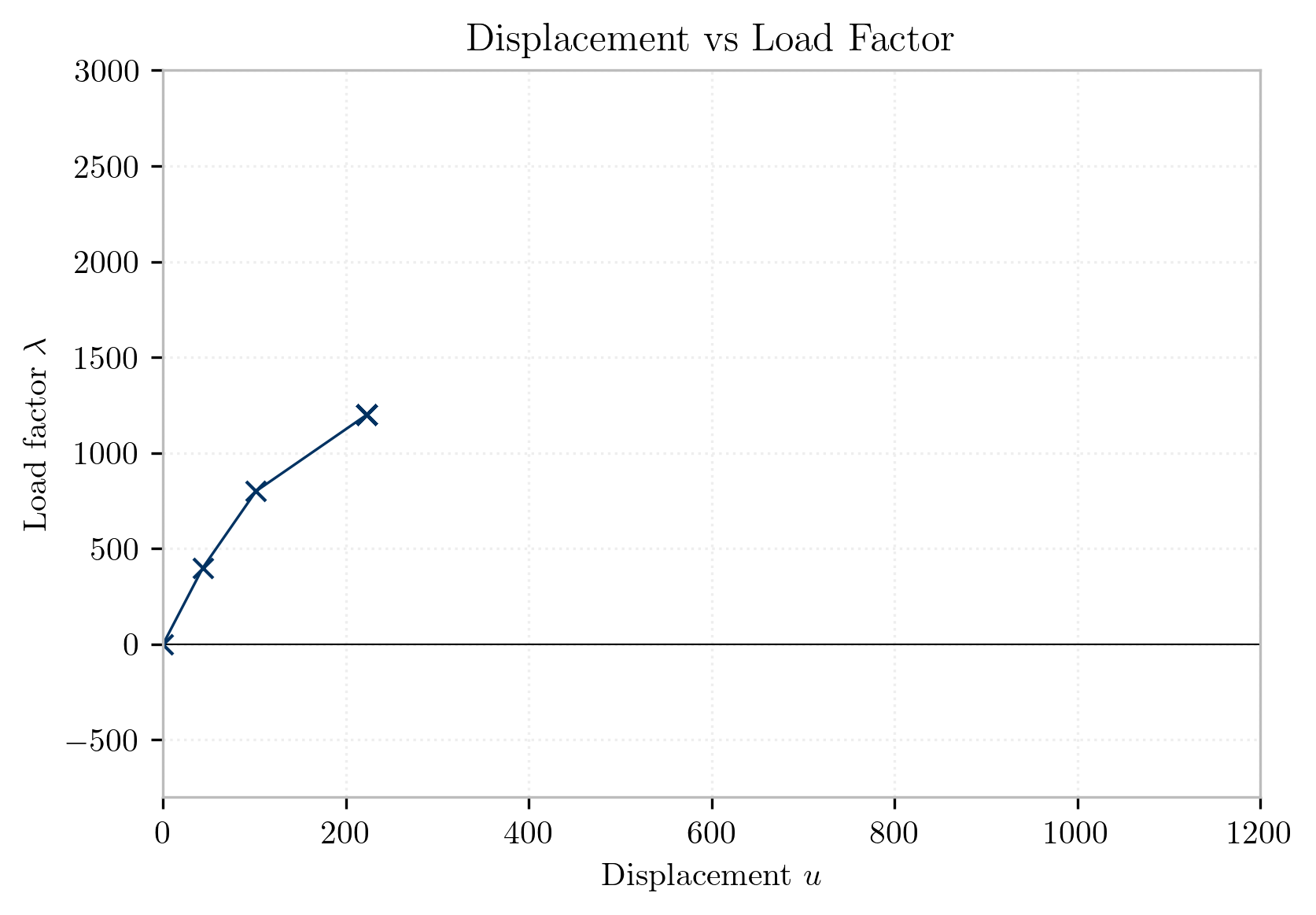

Load Control#
def solution0(model, dx):
model.integrator("LoadControl", 400.0)
ax = create_figure()
x, y = analyze(*arch_model(), solution0, 6, 400.0)
ax.plot(-x, y, '-x', label="S0");

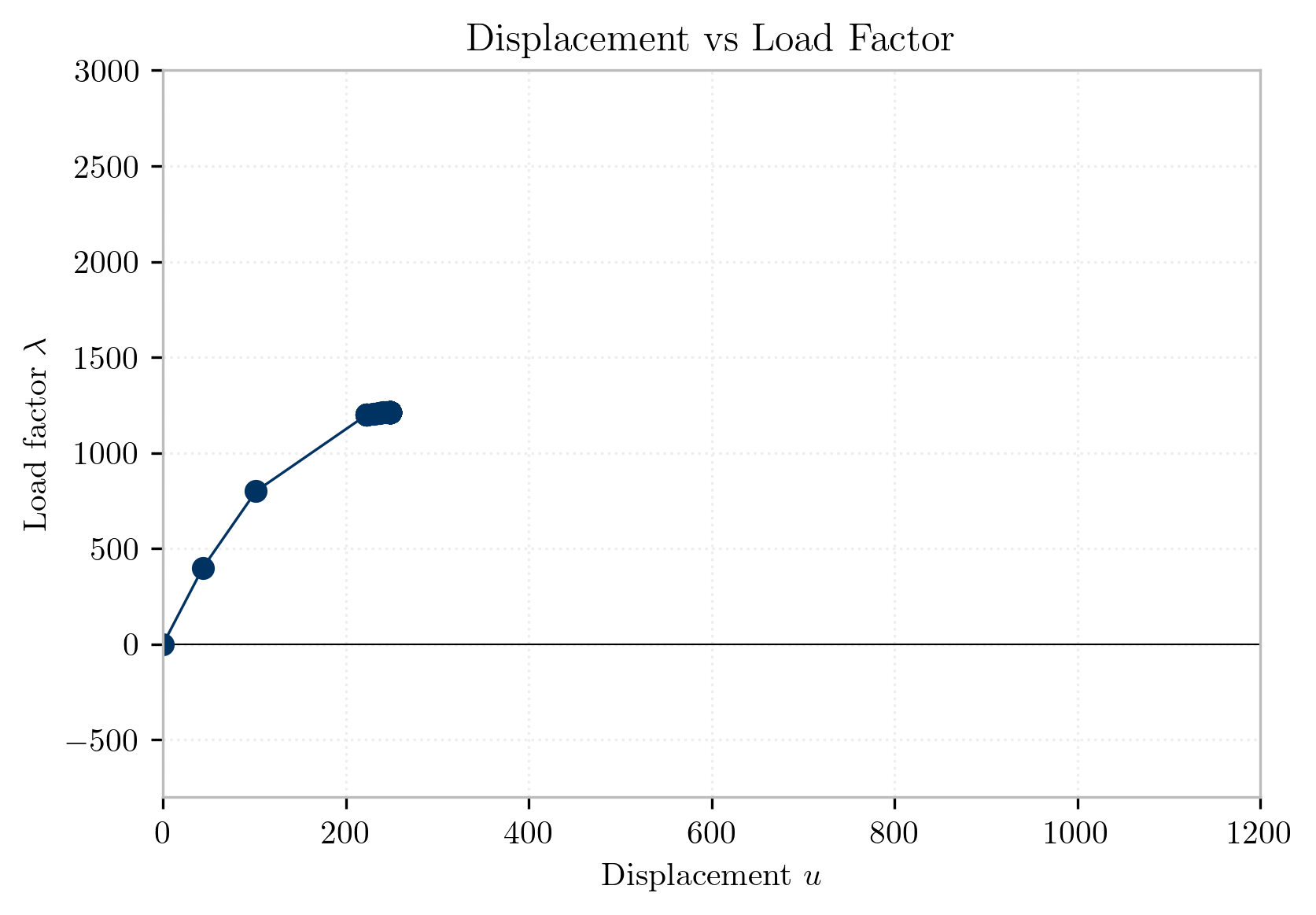

def solution1(model, dx):
Jd = 5
Jmax = 15
model.integrator("LoadControl", dx, Jd, -800., 800.)
ax = create_figure()
x, y = analyze(*arch_model(), solution1, None, 400.0)
ax.plot(-x, y, '-o', label="S1")
[<matplotlib.lines.Line2D at 0x3179767e0>]

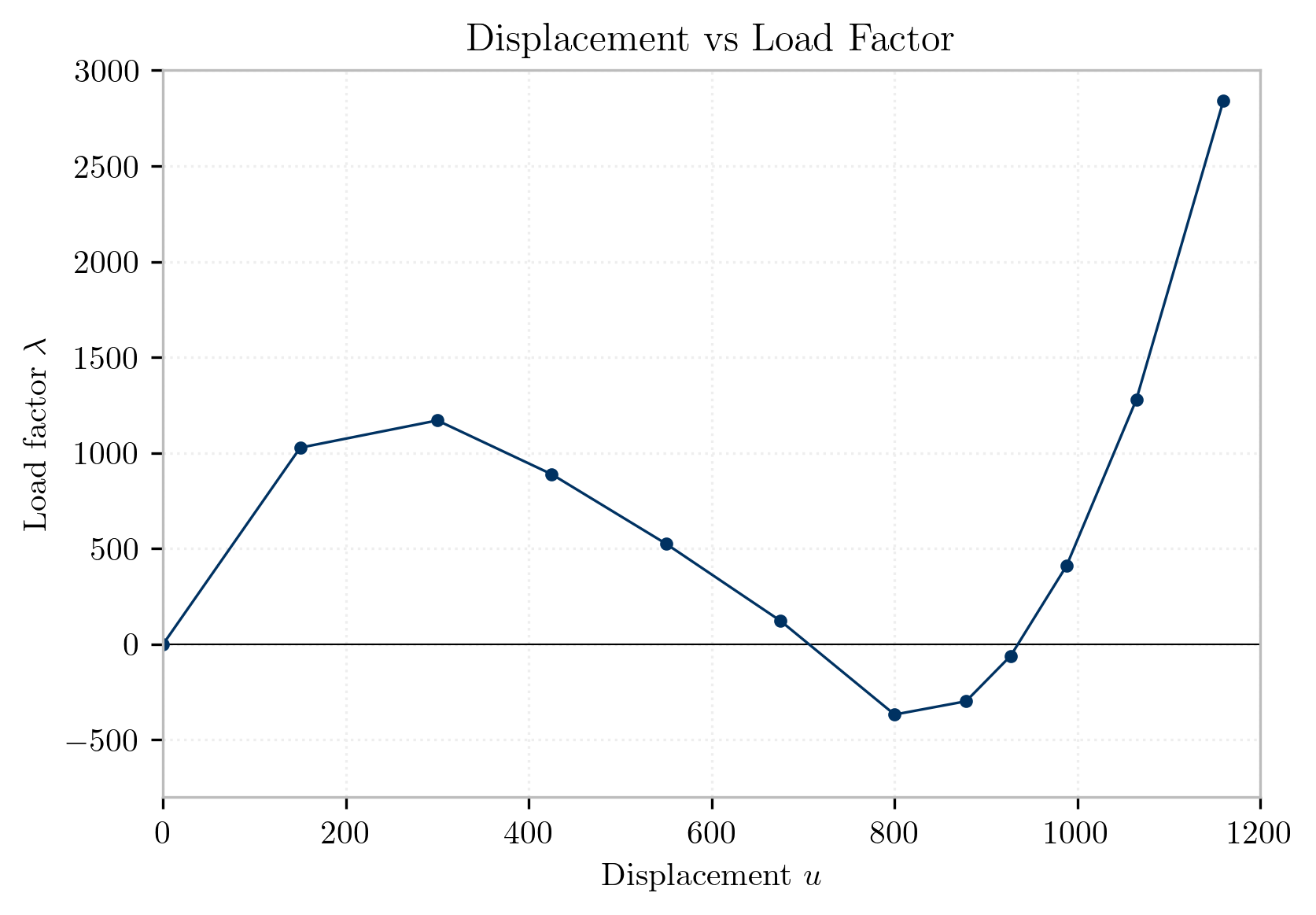

Displacement Control#
def solution2(model, dx, mid, dof, dumin=None, dumax=None):
Jd = 5
if dumin is not None:
model.integrator("DisplacementControl", mid, dof, dx, Jd, dumin, dumax)
else:
model.integrator("DisplacementControl", mid, dof, dx, Jd)
ax = create_figure()
model, mid = arch_model()
x, y = analyze(model, mid, solution2, 7, -150, *(mid, 2, -300, -10))
ax.plot(-x, y, '.-', label="S2")
[<matplotlib.lines.Line2D at 0x317c9e780>]

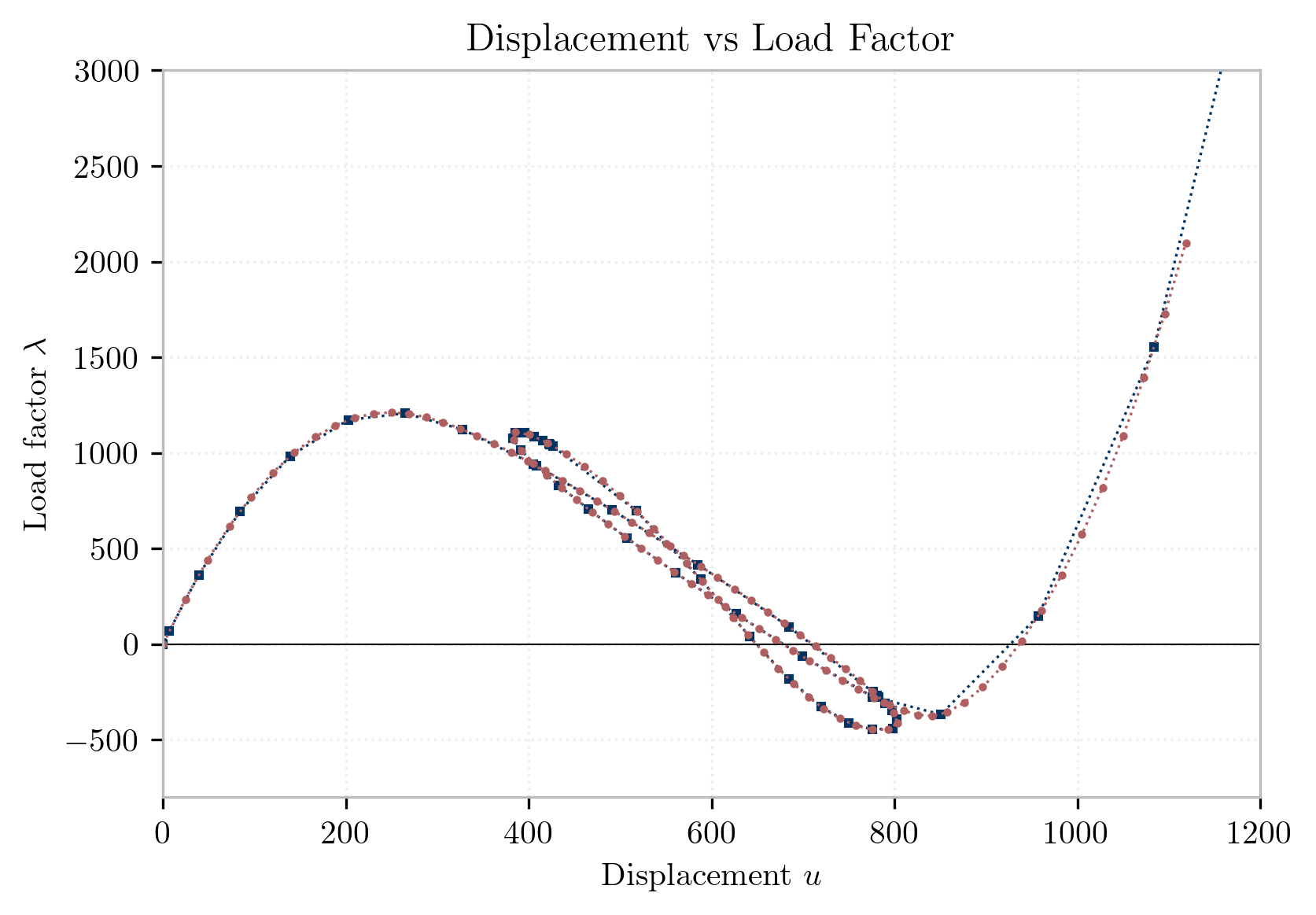

3) ArcLength#
ax = create_figure()
def arc_control(model, dx, *args, a=0):
model.integrator("ArcLength", dx, a, j=6,det=True, exp=0.5, reference="point")
x, y = analyze(*arch_model(), arc_control, None, 30)
ax.plot(-x, y, "s:", ms=2, label="arc")
def arc_control(model, dx, *args, a=0):
model.integrator("ArcLength", dx, a, det=True, exp=0.0, reference="point")
x, y = analyze(*arch_model(), arc_control, None, 45)
ax.plot(-x, y, ".:", ms=3, label="arc")
[<matplotlib.lines.Line2D at 0x317da74d0>]

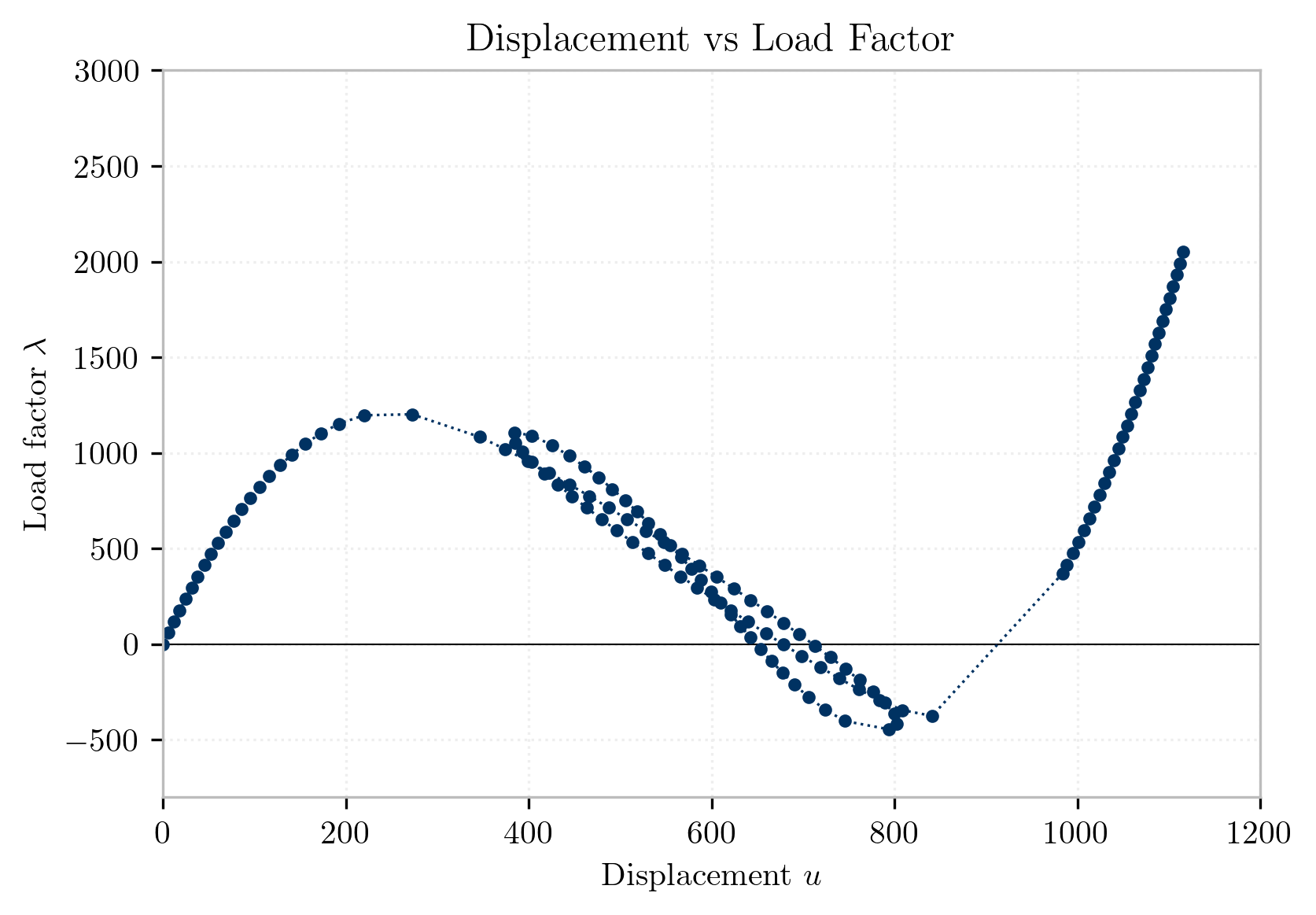

4) MinUnbalDispNorm#
def norm_control(model, dx, *args):
Jd = 5
# model.integrator("MinUnbalDispNorm", dx, Jd, -15, 10, det=True)
model.integrator("MinUnbalDispNorm", dx, Jd, dx/100, dx, det=True)
ax = create_figure()
x, y = analyze(*arch_model(), norm_control, None, 60)
ax.plot(-x, y, ".:");

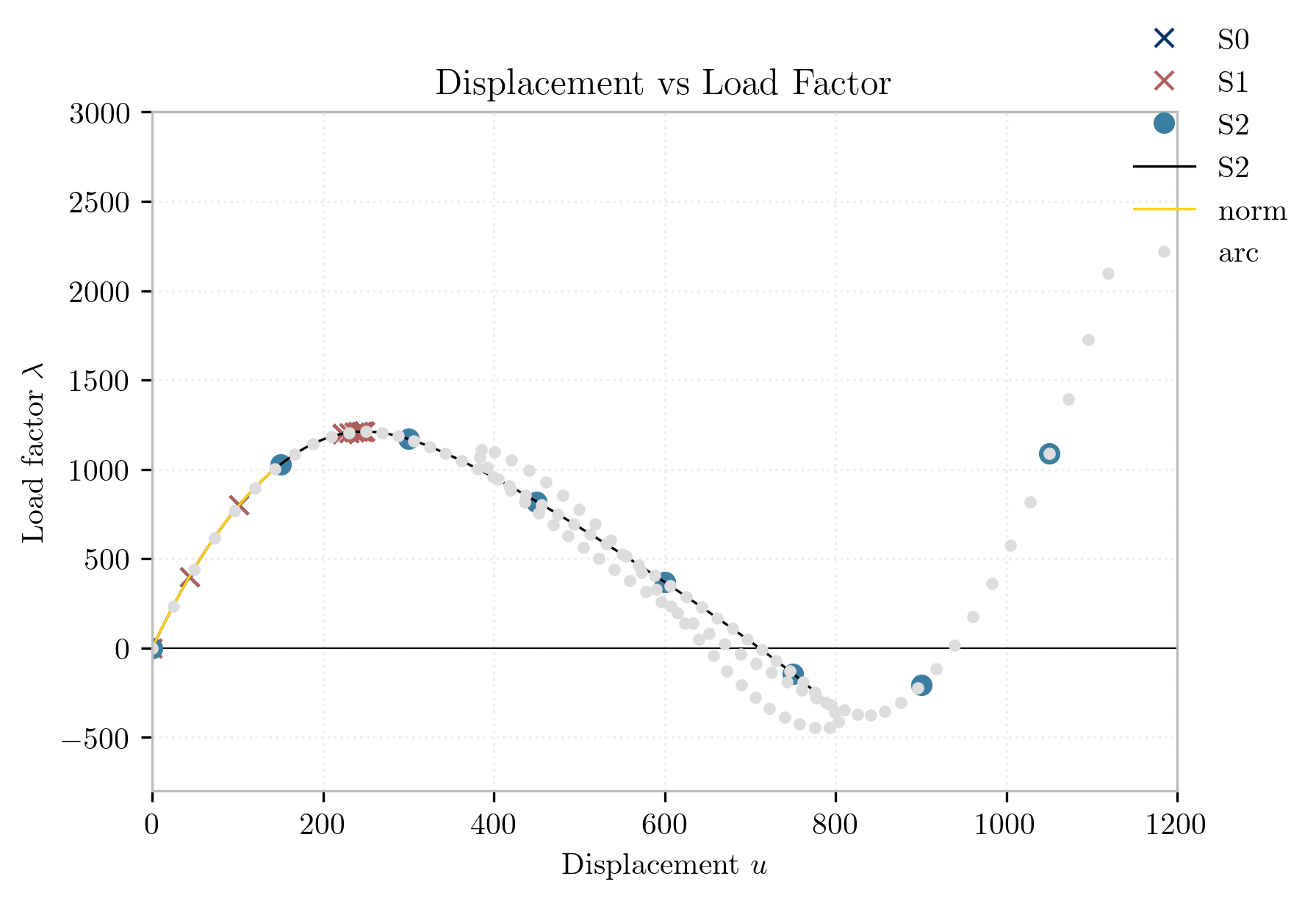

Other#
ax = create_figure()
fig = ax.figure
x, y = analyze(*arch_model(), solution0, 6, 400.0)
ax.plot(-x, y, 'x', label="S0")
x, y = analyze(*arch_model(), solution1, 6, 400.0)
ax.plot(-x, y, 'x', label="S1")
model, mid = arch_model()
x, y = analyze(model, mid, solution2, 7, -150, *(mid, 2))
ax.plot(-x, y, 'o', label="S2")
x, y = analyze(*arch_model(), solution2, 536, -1.5, *(mid, 2))
ax.plot(-x, y, '-', label="S2")
# x, y = analyze(*arch_model(), arc_control, 9500, 0.5, 0)
# ax.plot(-x, y, "-", label="arc")
x, y = analyze(*arch_model(), norm_control, 100, 1.0)
ax.plot(-x, y, "-", label="norm")
x, y = analyze(*arch_model(), arc_control, None, 45)
ax.plot(-x, y, ".", label="arc")
# x, y = analyze(*arch_model(), arc_control, 80, 88, 0)
# ax.plot(-x, y, "+", label="arc")
# x, y = analyze(*arch_model(), arc_control, 80, 188, 0)
# ax.plot(-x, y, "*", label="arc")
# x, y = analyze(*arch_model(), arc_control, 8000, 0.8, 0)
# ax.plot(-x, y, "x", label="arc")
fig.legend();

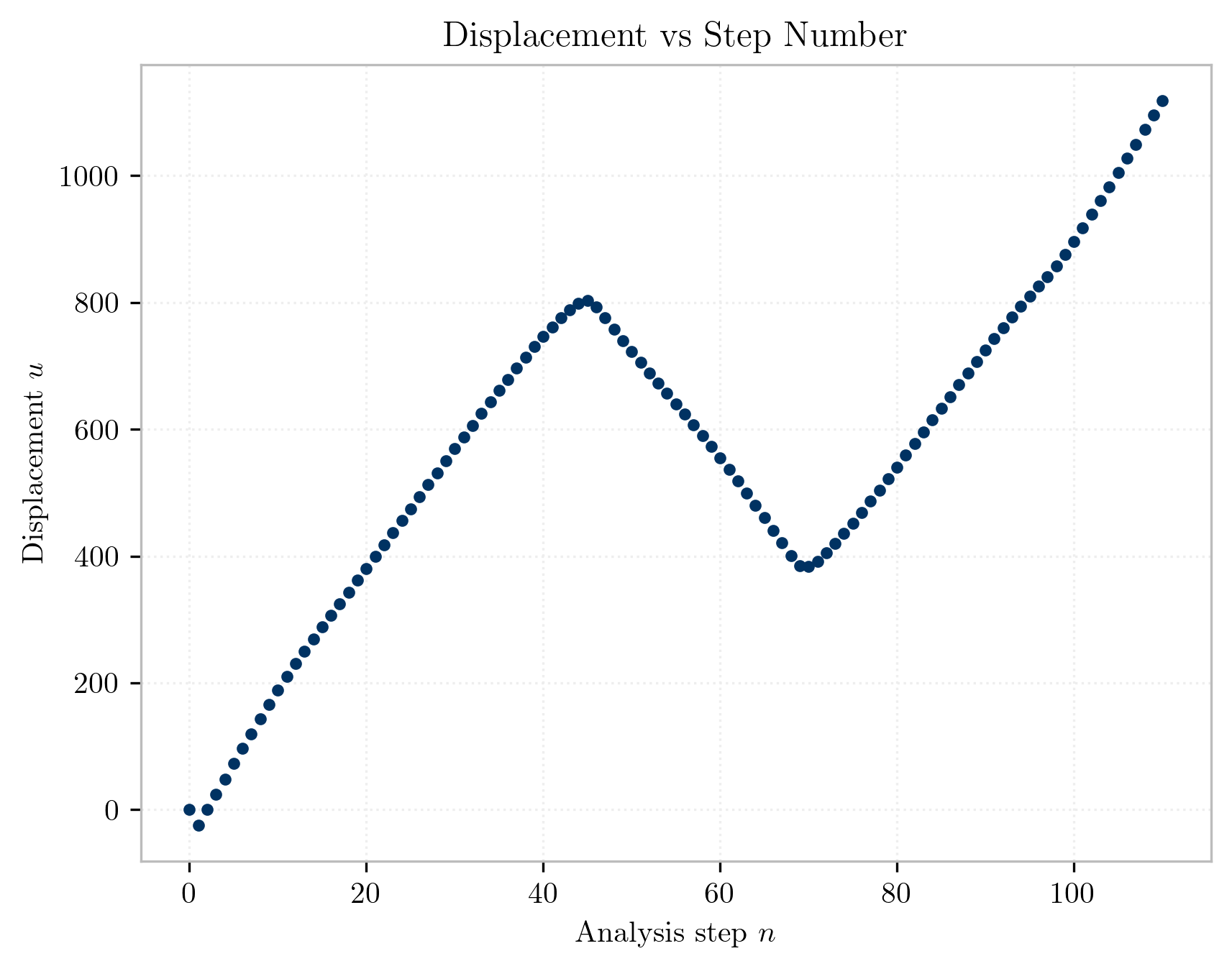

fix, ax = plt.subplots()
ax.plot(-x, '.');
ax.set_title("Displacement vs Step Number")
ax.set_ylabel("Displacement $u$")
ax.set_xlabel("Analysis step $n$");
References#
Clarke, M.J. and Hancock, G.J. (1990) ‘A study of incremental‐iterative strategies for non‐linear analyses’, International Journal for Numerical Methods in Engineering, 29(7), pp. 1365–1391. Available at: https://doi.org/10.1002/nme.1620290702.
