Damage Library

A damage wrapper takes an existing model for a work-conjugate pair of variables, and construct a new model which progressively deteriorates the response of the basis model.

In the uniaxial case, it is postulated that degredation takes the form

\[\begin{split} \begin{aligned} \sigma &= (1 - d) \bar{\sigma} \\ E &= (1 - d) \bar{E} \end{aligned} \end{split}\]

The internal variable, \(d\), varies from \(0\) to \(1\) and evolves according to a dissipation rule that is defined by assigning an accumulation relation over an energy interval, \(\{\psi_{d0}, \psi_{d1}\}\).

import xara
from xara.damage import (
    # Submodules
    accumulation,
    dissipation ,
    # Wrapper
    UniaxialDamage
)
import thesis

from xara.units.english import ksi, psi, inch, ft
from numpy import sin, linspace, pi, sqrt

import matplotlib.pyplot as plt

Modeling

Accumulation Rules

The accumulation submodule is a library of accumulation models. An accumulation object has the following methods:

• AccumulationModel.getIndex(psi: float) -> DamageIndex


  where DamageIndex has scalar fields y and dydx containing the value and tangent, respectively, of the accumulation function at the given normalized energy, psy.

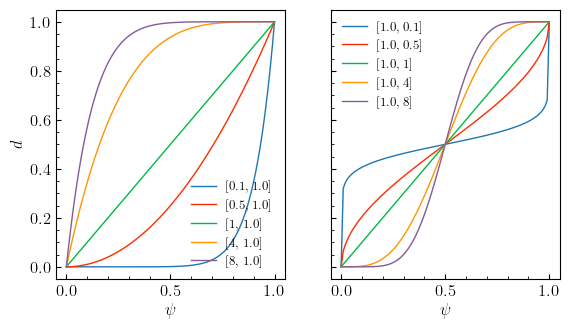

psi = linspace(0.00, 1., 100)

fig, axs = plt.subplots(1,2, figsize=(6.5,3.5),  sharey=True)

parameter_range = [0.1, 0.5, 1, 4, 8]
parameters = [None, None]

for i,ax in enumerate(axs):
    for param in parameter_range:
        parameters[i] = param
        parameters[not i] = 1.0
        a = accumulation.MBeta(parameters)
        ax.plot(psi, [a.getIndex(x).y for x in psi], label=f"{parameters}")

    ax.legend()
    # ax.axis("equal")
    ax.set_xlabel(r"$\psi$")
axs[0].set_ylabel(r"$d$");

#????????????????????????????????
# fig, axs = plt.subplots(1,2, figsize=(6.5,3.5),  sharey=True)

# parameter_range = [0.1, 0.5, 1, 4, 8]
# parameters = [None, None]

# for i,ax in enumerate(axs):
#     for param in parameter_range:
#         parameters[i] = param
#         parameters[not i] = 1.0
#         a = accumulation.Weibull(parameters)
#         ax.plot(psi, [a.getIndex(2*x).y for x in psi], label=f"{parameters}")
#     ax.legend()
#     # ax.axis("equal")
#     ax.set_xlabel(r"$\psi$")
# axs[0].set_ylabel(r"$d$");

Dissipation

The TotalStrain dissipation rule specifies the maner in which energy is dissipated for a particular loading direction. This allows distinct strategies to be applied in tension and compression.

A directional dissipation rule can be defined in the following ways:

• TotalStrain(accum, interval, cycle, scale)

Fy  = 66.8*ksi             # steel yield stress
Es  = 29000.*ksi           # modulus of steel
Bs  = 0.04                 # strain-hardening ratio
R0  = 20                   # control the transition from elastic to plastic branches
cR1 = 0.925                # "
cR2 = 0.15                 # "

steel = xara.UniaxialMaterial("Steel02", 60e3, 29e6, 0.05, R0=R0)

interval  = [3, 125]  # [Cd0, Cd1]
cycle     =  0.0   # Cwc
scale     = {"E": 29e6, "fy": 60e3}
# Directional Coupling
coupling  = [0.1, 0.1]    # Ccd

# a = accumulation.MBeta([4.2, 1.])
evol = ["mbeta", [4.2, 1.0]]
d = dissipation.TotalStrain(evol, interval, cycle, scale)
m = UniaxialDamage(steel,  d)

n = 300
strain = Fy/Es*sin(linspace(0, 10.5*pi, n))*linspace(0.2, 6.0, n)

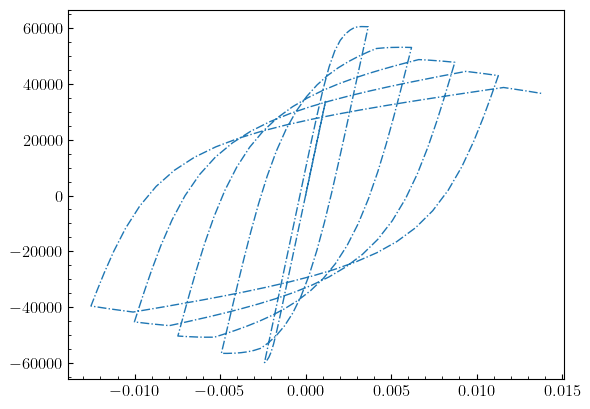

with m as mat:
    plt.plot(strain, [mat.getStress(e, commit=True) for e in strain],"-.")

Examples

a = accumulation.MBeta(1, [4.2, 1.])
d = dissipation.TotalStrain(evol, interval, cycle, scale)

n = 300
strain = Fy/Es*sin(linspace(0, 12.5*pi, n))*linspace(0.2, 6.0, n)

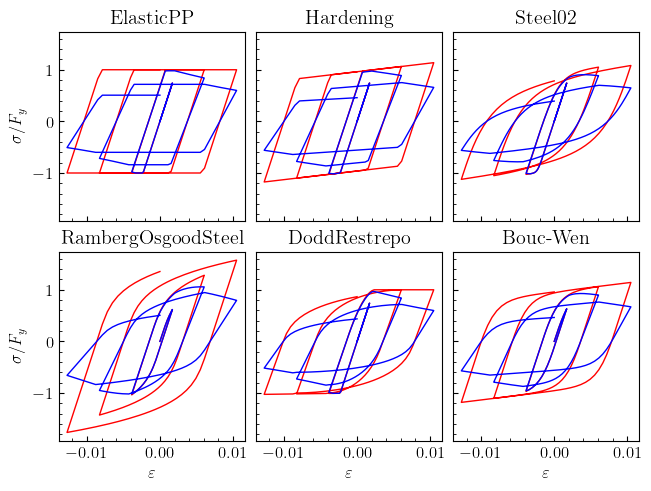

fig, ax = plt.subplots(2,3, sharey=True, sharex=True, constrained_layout=True)

esh, esu = 10*Fy/Es, 14*Fy/Es
eshi = (esu + 5*esh)/5

materials = [
    xara.UniaxialMaterial("ElasticPP", Es, Fy/Es),
    xara.UniaxialMaterial("Hardening", Es, Fy, 0.00*Es, 0.04*Es),
    xara.UniaxialMaterial("Steel02", Fy, Es, Bs, 18.),
    xara.UniaxialMaterial("RambergOsgoodSteel", Fy, Es, 0.002, 4),
    xara.UniaxialMaterial("DoddRestrepo", Fy, 1.3*Fy, esh, esu, Es, eshi, 1.1*Fy),
]

for i,base in enumerate(materials):
    with base as m:
        ax[i//3, i%3].plot(strain,
                           [m.getStress(e, commit=True)/Fy for e in strain], ":", label="base", color="red")
        ax[i//3, i%3].set_title(base.type)

    with UniaxialDamage(base, d) as m:
        ax[i//3, i%3].plot(strain, [m.getStress(e, commit=True)/Fy for e in strain], color="blue")

    if not i%3:
        ax[i//3, i%3].set_ylabel(r"$\sigma/F_y$")

    if i//3:
        ax[i//3, i%3].set_xlabel(r"$\varepsilon$")

n = 300
strain = Fy/Es*sin(linspace(0, 6*pi, n))*linspace(0.2, 6.0, n)

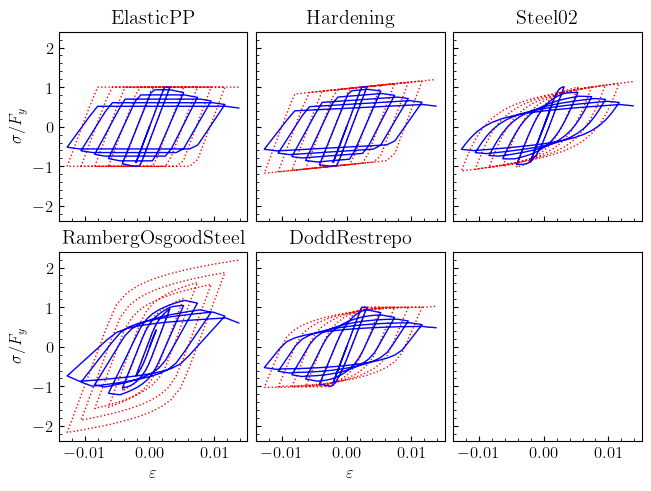

fig, ax = plt.subplots(2,3, sharey=True, sharex=True, constrained_layout=True)

esh, esu = 10*Fy/Es, 14*Fy/Es
eshi = (esu + 5*esh)/5

materials = [
    xara.UniaxialMaterial("ElasticPP", Es, Fy/Es),
    xara.UniaxialMaterial("Hardening", Es, Fy, 0.00*Es, 0.04*Es),
    xara.UniaxialMaterial("Steel02", Fy, Es, Bs, 18.),
    xara.UniaxialMaterial("RambergOsgoodSteel", Fy, Es, 0.002, 4),
    xara.UniaxialMaterial("DoddRestrepo", Fy, 1.3*Fy, esh, esu, Es, eshi, 1.1*Fy),
    xara.UniaxialMaterial("BWBF", Fy=Fy, E=Es, alpha=0.04, n=2)
]

names = {"BWBF": "Bouc-Wen"}

for i,base in enumerate(materials):
    with base as m:
        ax[i//3, i%3].plot(strain,
                           [m.getStress(e, commit=True)/Fy for e in strain], label="base", color="red")
        ax[i//3, i%3].set_title(names.get(base.type, base.type))

    with UniaxialDamage(base, d) as m:
        ax[i//3, i%3].plot(strain, [m.getStress(e, commit=True)/Fy for e in strain], color="blue")

    if not i%3:
        ax[i//3, i%3].set_ylabel(r"$\sigma/F_y$")

    if i//3:
        ax[i//3, i%3].set_xlabel(r"$\varepsilon$")
