Concrete#
import xara
from matplotlib import pyplot as plt
import numpy as np
import math
def _bezier3(xi, x0, x1, x2, y0, y1, y2):
'''
a quadratic bezier curve. gives the yi at xi, from 3 control points
'''
A = x0 - 2.0 * x1 + x2
B = 2.0 * (x1 - x0)
C = x0 - xi
if abs(A) < 1.0e-12:
x1 = x1 + 1.0E-6 * (x2 - x0)
A = x0 - 2.0 * x1 + x2
B = 2.0 * (x1 - x0)
C = x0 - xi
if A == 0.0:
return 0.0
D = B * B - 4.0 * A * C
t = (math.sqrt(D) - B) / (2.0 * A)
return (y0 - 2.0 * y1 + y2) * t * t + 2.0 * (y1 - y0) * t + y0
def _get_lch_ref(E,ft,Gt,fc,ec,Gc):
'''
compute a reference characteristic length
when Gt and Gc are computed from equations
'''
# min lch for tension
et_el = ft/E # no damage at peak
Gt_min = ft*et_el/2.0
hmin_t = Gt/Gt_min/100.0
# min lch for compression
ec1 = fc/E
ec_pl = (ec-ec1)*0.4 + ec1
Gc_min = fc*(ec-ec_pl)/2.0
hmin_c = Gc/Gc_min/100.0
# return the minimum
return min(hmin_t, hmin_c)
def _make_tension(E, ft, Gt):
'''
a trilinar hardening-softening law for tensile response
'''
f0 = ft*0.9
f1 = ft
e0 = f0/E
e1 = f1/E*1.5
ep = e1-f1/E
f2 = ft/5.0
f3 = 1.0e-3*ft
w2 = Gt/ft
w3 = 5.0*w2
e2 = w2 + f2/E + ep
if e2 <= e1: e2 = e1*1.001
e3 = w3 + f3/E + ep
if e3 <= e2: e3 = e2*1.001
e4 = e3*10.0
Te = [0.0, e0, e1, e2, e3, e4] # total strain points
Ts = [0.0, f0, f1, f2, f3, f3] # nominal stress points
Td = [0.0, 0.0, 0.0, 0.0, 0.0, 0.0] # initialize damage list
Tpl = [0.0, 0.0, ep, e2*0.9, e3*0.8, e3*0.8] # desired values of equivalent plastic strains
for i in range(2, len(Te)):
xi = Te[i]
si = Ts[i]
xipl = Tpl[i]
xipl_max = xi-si/E
xipl = min(xipl, xipl_max)
qi = (xi-xipl)*E
Td[i] = 1.0-si/qi # compute damage
return (Te, Ts, Td)
def _make_compression(E, fc, ec, Gc):
'''
a quadratic hardening followed by linear softening for compressive response
'''
fc0 = fc/2.0
ec0 = fc0/E
ec1 = fc/E
fcr = fc*1.0e-1
ec_pl = (ec-ec1)*0.4 + ec1
Gc1 = fc*(ec-ec_pl)/2.0
Gc2 = max(Gc1*1.0e-2, Gc-Gc1)
ecr = ec + 2.0*Gc2/(fc+fcr)
Ce = [0.0, ec0] # total strain points
Cs = [0.0, fc0] # nominal stress points
Cpl = [0.0, 0.0] # desired values of equivalent plastic strains
nc = 10
dec = (ec-ec0)/(nc-1)
for i in range(nc-1):
iec = ec0+(i+1.0)*dec
Ce.append(iec)
Cs.append(_bezier3(iec, ec0, ec1, ec, fc0, fc, fc))
Cpl.append(Cpl[-1]+(iec-Cpl[-1])*0.7)
# end of linear softening - begin residual plateau
Ce.append(ecr)
Cs.append(fcr)
Cpl.append(Cpl[-1] + (ecr-Cpl[-1])*0.7)
# extend to make a plateau
Ce.append(ecr+ec0)
Cs.append(fcr)
Cpl.append(Cpl[-1])
# compute damage now
Cd = [0.0]*len(Ce)
for i in range(2, len(Ce)):
xi = Ce[i]
si = Cs[i]
xipl = Cpl[i]
xipl_max = xi-si/E
xipl = min(xipl, xipl_max)
qi = (xi-xipl)*E
Cd[i] = 1.0-si/qi # compute damage
# Done
return (Ce, Cs, Cd)
def make_concrete(E, ft, fc, ec, Gt, Gc):
lch_ref = _get_lch_ref(E, ft, Gt, fc, ec, Gc)
Te, Ts, Td = _make_tension(E, ft, Gt/lch_ref)
Ce, Cs, Cd = _make_compression(E, fc, ec, Gc/lch_ref)
return (Te, Ts, Td, Ce, Cs, Cd, lch_ref)
Compression Analysis#
# the 2D model
ops = xara.Model(ndm=2, ndf=2)
# the material (units = N, mm)
E = 30000.0
v = 0.2
fc = 30.0
ft = fc/10.0
ec = 2.0*fc/E
Gt = 0.073*fc**0.18
Gc = 2.0*Gt*(fc/ft)**2
Te, Ts, Td, Ce, Cs, Cd, lch_ref = make_concrete(E, ft, fc, ec, Gt, Gc)
ops.nDMaterial('ASDConcrete3D', 1,
E, v, # elasticity
'-Te', *Te, '-Ts', *Ts, '-Td', *Td, # tensile law
'-Ce', *Ce, '-Cs', *Cs, '-Cd', *Cd, # compressive law
'-autoRegularization', lch_ref # use auto regularization: the input Gt and Gc are NOT specific fracture energies
)
# the plane stress
# ops.nDMaterial('PlaneStress', 2, 1)
ops.section("PlaneStress", 1, 1, 1.0)
# a triangle with lch = 250
lch = 250.0
ops.node(1, 0, 0)
ops.node(2, lch, 0)
ops.node(3, 0, lch)
ops.element('tri31', 1, (1, 2, 3), section=1) # 1.0, 'PlaneStress', 2)
# fixity
ops.fix(1, 1, 1)
ops.fix(2, 0, 1)
ops.fix(3, 1, 0)
# a simple ramp
ops.timeSeries('Linear', 1)
# imposed strain
emax = 0.01
cycles = np.linspace(0.0, emax, 10)
# begin plot
SX = [0.0]
SY = [0.0]
PX = [0.0]
PY = [0.0]
plt.ion()
fig, ax = plt.subplots(1,1)
ax.grid(linestyle=':')
ax.set(xlim=[-emax*1.1, emax*0.1],ylim=[-fc*1.2, fc*0.1])

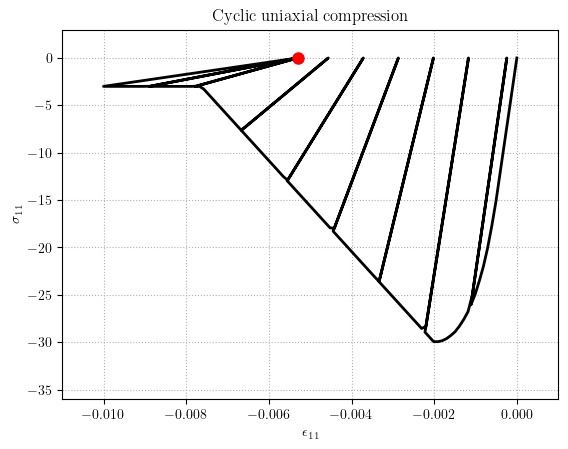

ax.set_title('Cyclic uniaxial compression')
ax.set_xlabel(r'$\epsilon_{11}$')
ax.set_ylabel(r'$\sigma_{11}$')
the_line, = ax.plot(SX, SY, '-k', linewidth=2.0)
the_tip, = ax.plot(PX, PY, 'or', fillstyle='full', markersize=8)
# some default analysis settings
ops.constraints('Transformation')
ops.numberer('Plain')
ops.system('FullGeneral')
ops.test('NormDispIncr', 1.0e-8, 10, 0)
ops.algorithm('Newton')
for icycle in range(1, len(cycles)):
# get current plastic strain (if any)
ep = -ops.nodeDisp(2)[0]/lch
# impose strain
current_strain = cycles[icycle]
ops.pattern('Plain', 1, 1)
ops.sp(2, 1, -current_strain*lch, pattern=1)
# load
# start from a percentage = ep/current_strain
time_start = ep/current_strain
ops.setTime(time_start)
num_incr = max(1, int((current_strain-ep)/emax*100.0))
time_incr = (1.0-time_start)/float(num_incr)
ops.integrator('LoadControl', time_incr)
ops.analysis('Static')
for i in range(num_incr):
ok = ops.analyze(1)
if ok == 0:
strain = ops.eleResponse(1, 'material', 1, 'strain')
stress = ops.eleResponse(1, 'material', 1, 'stress')
SX.append(strain[0])
SY.append(stress[0])
the_line.set_xdata(SX)
the_line.set_ydata(SY)
PX = [SX[-1]]
PY = [SY[-1]]
the_tip.set_xdata(PX)
the_tip.set_ydata(PY)
fig.canvas.draw()
fig.canvas.flush_events()
else:
break
if ok != 0:
break
# unload
ops.remove('pattern', 1)
ops.setTime(0.0)
ops.integrator('LoadControl', 1.0)
ops.analysis('Static')
ok = ops.analyze(1)
# plot the unload point
strain = ops.eleResponse(1, 'material', 1, 'strain')
stress = ops.eleResponse(1, 'material', 1, 'stress')
SX.append(strain[0])
SY.append(stress[0])
the_line.set_xdata(SX)
the_line.set_ydata(SY)
PX = [SX[-1]]
PY = [SY[-1]]
the_tip.set_xdata(PX)
the_tip.set_ydata(PY)
fig.canvas.draw()
fig.canvas.flush_events()
plt.ioff()
plt.show()
Tension test#
# the 2D model
ops = xara.Model(ndm=2, ndf=2)
# the material (units = N, mm)
E = 30000.0
v = 0.2
fc = 30.0
ft = fc/10.0
ec = 2.0*fc/E
Gt = 0.073*fc**0.18
Gc = 2.0*Gt*(fc/ft)**2
Te, Ts, Td, Ce, Cs, Cd, lch_ref = make_concrete(E, ft, fc, ec, Gt, Gc)
ops.nDMaterial('ASDConcrete3D', 1,
E, v, # elasticity
'-Te', *Te, '-Ts', *Ts, '-Td', *Td, # tensile law
'-Ce', *Ce, '-Cs', *Cs, '-Cd', *Cd, # compressive law
'-autoRegularization', lch_ref # use auto regularization: the input Gt and Gc are NOT specific fracture energies
)
# the plane stress
ops.nDMaterial('PlaneStress', 2, 1)
# a triangle with lch = 250
lch = 250.0
ops.node(1, 0, 0)
ops.node(2, lch, 0)
ops.node(3, 0, lch)
ops.element('tri31', 1, 1, 2, 3, 1.0, 'PlaneStress', 2)
# fixity
ops.fix(1, 1, 1)
ops.fix(2, 0, 1)
ops.fix(3, 1, 0)
# a simple ramp
ops.timeSeries('Linear', 1)
# imposed strain
emax = 0.01
cycles = np.linspace(0.0, emax, 10)
# begin plot
SX = [0.0]
SY = [0.0]
PX = [0.0]
PY = [0.0]
plt.ion()
fig, ax = plt.subplots(1,1)
ax.grid(linestyle=':')
ax.set(xlim=[-emax*1.1, emax*0.1],ylim=[-fc*1.2, fc*0.1])
ax.set_title('Cyclic uniaxial compression')
ax.set_xlabel(r'$\epsilon_{11}$')
ax.set_ylabel(r'$\sigma_{11}$')
the_line, = ax.plot(SX, SY, '-k', linewidth=2.0)
the_tip, = ax.plot(PX, PY, 'or', fillstyle='full', markersize=8)
# some default analysis settings
ops.constraints('Transformation')
ops.numberer('Plain')
ops.system('FullGeneral')
ops.test('NormDispIncr', 1.0e-8, 10, 0)
ops.algorithm('Newton')
for icycle in range(1, len(cycles)):
# get current plastic strain (if any)
ep = -ops.nodeDisp(2)[0]/lch
# impose strain
current_strain = cycles[icycle]
ops.pattern('Plain', 1, 1)
ops.sp(2, 1, -current_strain*lch)
# load
# start from a percentage = ep/current_strain
time_start = ep/current_strain
ops.setTime(time_start)
num_incr = max(1, int((current_strain-ep)/emax*100.0))
time_incr = (1.0-time_start)/float(num_incr)
ops.integrator('LoadControl', time_incr)
ops.analysis('Static')
for i in range(num_incr):
ok = ops.analyze(1)
if ok == 0:
strain = ops.eleResponse(1, 'material', 1, 'strain')
stress = ops.eleResponse(1, 'material', 1, 'stress')
SX.append(strain[0])
SY.append(stress[0])
the_line.set_xdata(SX)
the_line.set_ydata(SY)
PX = [SX[-1]]
PY = [SY[-1]]
the_tip.set_xdata(PX)
the_tip.set_ydata(PY)
fig.canvas.draw()
fig.canvas.flush_events()
else:
break
if ok != 0:
break
# unload
ops.remove('pattern', 1)
ops.setTime(0.0)
ops.integrator('LoadControl', 1.0)
ops.analysis('Static')
ok = ops.analyze(1)
# plot the unload point
strain = ops.eleResponse(1, 'material', 1, 'strain')
stress = ops.eleResponse(1, 'material', 1, 'stress')
SX.append(strain[0])
SY.append(stress[0])
the_line.set_xdata(SX)
the_line.set_ydata(SY)
PX = [SX[-1]]
PY = [SY[-1]]
the_tip.set_xdata(PX)
the_tip.set_ydata(PY)
fig.canvas.draw()
fig.canvas.flush_events()
plt.ioff()
plt.show()
import matplotlib.animation as animation
from IPython.display import HTML
def plot_animation(SX, SY, title):
fig, ax = plt.subplots()
ax.grid(linestyle=':')
ax.set(xlim=[-emax*1.1, emax*0.1], ylim=[-fc*1.2, fc*0.1])
ax.set_title(title)
ax.set_xlabel(r'$\epsilon_{11}$')
ax.set_ylabel(r'$\sigma_{11}$')
line, = ax.plot([], [], '-k', linewidth=2.0)
tip, = ax.plot([], [], 'or', markersize=8)
def update(i):
line.set_data(SX[:i+1], SY[:i+1])
tip.set_data([SX[i]], [SY[i]])
return line, tip
anim = animation.FuncAnimation(
fig, update, frames=len(SX), interval=50, blit=True)
plt.close(fig)
return HTML(anim.to_jshtml())
plot_animation(SX, SY, 'Cyclic uniaxial tension')
